AND Gate Simulation in Proteus Software

AND Gate Introduction:
The AND gate is a basic digital logic gate that implements logical conjunction - it behaves according to the truth table to the right. A HIGH output (1) results only if both the inputs to the AND gate are HIGH (1). If neither or only one input to the AND gate is HIGH, a LOW output results.

In another sense, the function of AND effectively finds the minimum between two binary digits, just as the OR function finds the maximum. Therefore, the output is always 0
except when all the inputs are 1s.

AND Gate Symbols

There are three symbols for AND gates: the American (ANSI or 'military') symbol and the IEC ('European' or 'rectangular') symbol, as well as the deprecated DIN symbol. For more information see Logic Gate Symbols.

AND Gate Simulation in Proteus Software.

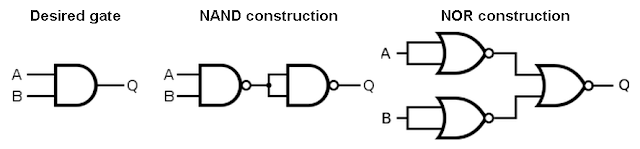

Alternatives of AND Gate

If no specific AND gates are available, one can be made from NAND or NOR gates, because NAND and NOR gates are considered the "universal gates," [1] meaning that they can be used to make all the others.







Read Full Article
